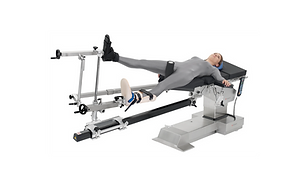

Schaerer AXIS
500
Mobile Operating Table For All Surgical Applications
The Axis 500 provides unsurpassed imaging areas, precise positioning, easy transportation, and the ability to handle large patient loads. Precise and durable Swiss construction means long life and low total cost of ownership. Accessory packages can be selected to tailor the table for trauma, orthopedics, urology, spine, vascular, and pain management procedures.
The universal table for all surgical disciplines with one electro-hydraulically driven table top movement for the seat plate. The unique design of the AXIS 500 provides the entire surgical team with enhanced access to the patient during urological, gynecological, obstetric, neuro/spine, and general surgery procedures. Manually adjustable head and leg plates supported by gas pressure springs. Universal table for all accessories, including extension devices OTZ, MTS, MIS, Carbonplate, and Carbon Spine Frame. X-ray transparency 1450 mm.
Features and Benefits
-
A cantilevered column table with the highest weight capacity ensures enhanced safety for various patient positions, supports all types of procedures across surgical disciplines, and provides a significantly more stable table..
-
The hand control is ergonomically shaped and has a clearly arranged keypad and LCD display of all important functions.
-
Maximum access for the surgeon, nurses, and technicians without additional longitudinal shifting. Table top area extends beyond the column up to 57" and X-ray transparent table top area (up to 74"×14.5").
-
Equipped with a second built-in panel controlled by an independent circuit. If in an emergency situation the main system fails, the operating table can be controlled with the emergency panel.
-
Full Stainless steel without a rubber cover on the column makes the table ideal from a hygienic perspective.
-
Only Schaerer operating tables have two independent motor pump systems that can be powered by batteries for several operating days.
-
Two unique, easy to use and fast foot switchers for lock/unlock and one for direction control.
Specifications
Maximum Patient Weight: (Static)
Maximum Patient Weight: (Dynamic)
Low Height:
Maximum Height:
Length Without Head/Leg Plates:
Length With Head/Leg Plates:
Trendelenburg/Reverse Trend:
Lateral Tilt:
Seat Section Up/Down:
Leg Section:
X-ray Transparent Table Top Area:
Electrical Power:
Battery Charge:
Standard Warranty:
771 lbs
485lbs
27"
43"
34.1"
78.6"
28°
18°
76°/40°
80°/110°
57"
110-120V/60Hz
Up to 5 Days
2 Years
